SIP2 BMS Interface Hardware for BACnet, Trend and Metering Integration

Connect meters, plant and third-party systems to BMS, energy monitoring and IoT platforms using one compact multi-protocol interface.

Get in touch Download Data Sheet

The Synapsys SIP2 hardware platform is a compact, low-cost BMS interface and data acquisition solution for building automation, metering and plant integration projects.

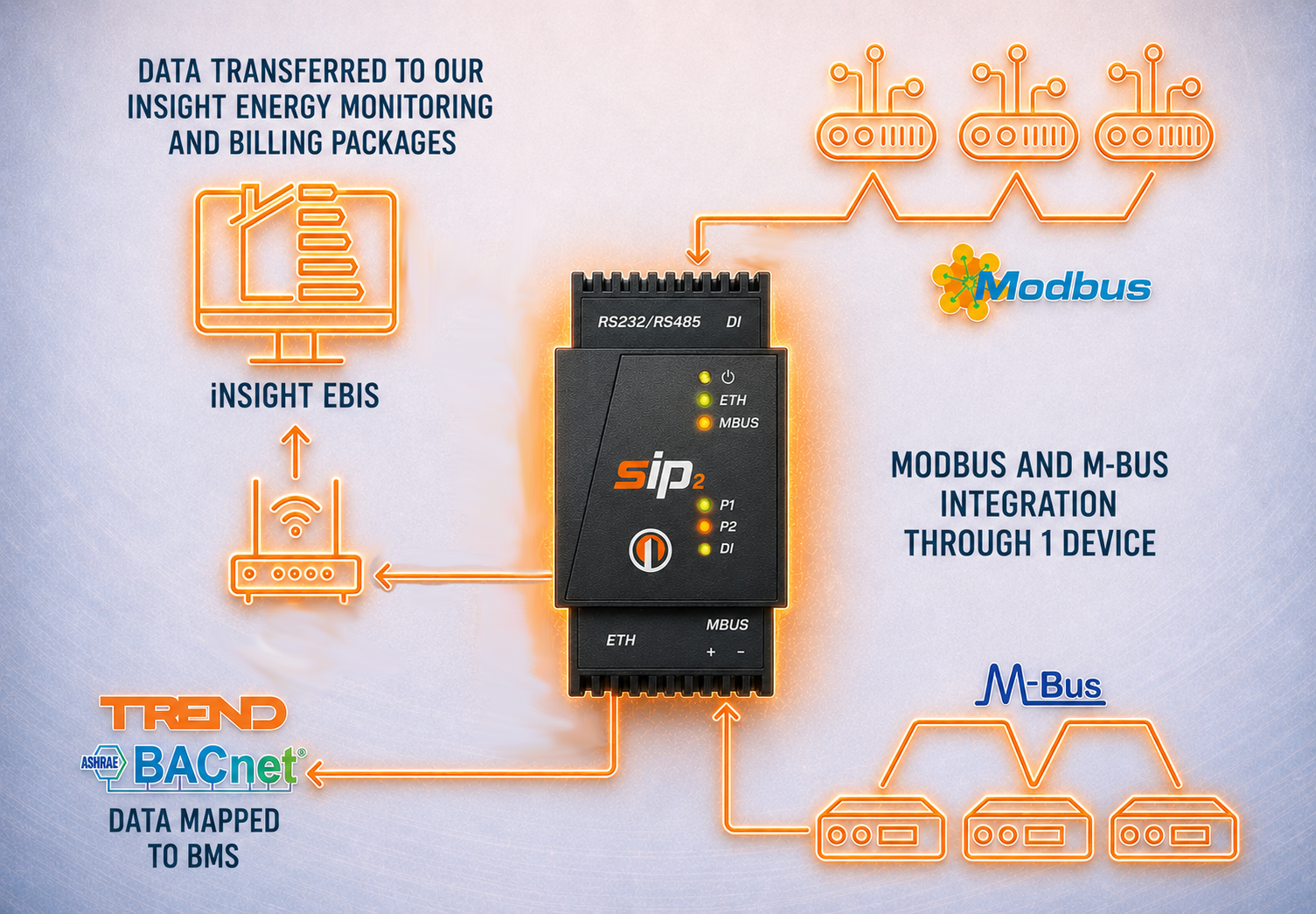

SIP2 supports BACnet and Trend interfacing, Modbus, M-Bus, MQTT, REST, digital input/pulse counting and data acquisition. It allows meter and plant data to be passed to Building Management Systems, Energy Monitoring Systems and Synapsys iNSIGHT Billing and Energy platforms.

SIP2 Multi-Protocol BMS Interface Features

  • Multi-protocol BMS interface hardware for metering, plant and third-party system integration
  • BACnet and Trend interfacing for building automation projects
  • Built-in M-Bus interface for up to 60 unit loads
  • Modbus support for serial field-bus integration
  • MQTT and REST Server support for IoT connectivity
  • Digital input / pulse counter for metering applications
  • Data acquisition for BMS, energy monitoring and reporting platforms
  • Power over Ethernet (PoE) for simplified installation
  • Compact DIN-rail mounting for control panels and plant-room installations
  • Available in 100, 300 and 600 point variants

SIP2 is designed for projects where meter, plant or third-party system data needs to be shared with one or more platforms. It can pass data to Building Management Systems, Energy Monitoring Systems and Synapsys iNSIGHT Billing and Energy platforms, helping engineers avoid duplicated hardware and repeated integration work.

Each SIP2 device supports a maximum of four drivers, with one instance of each selected driver per device. This allows the engineer or end user to configure the device around the specific integration requirement.

Available SIP2 drivers and functions include:

  • MQTT for IoT connectivity
  • REST Server for IoT connectivity
  • Synapsys Virtual IQ (vIQ) for Trend interfacing
  • Synapsys BACnet Integration Controller (BIC) for BACnet integration
  • Data Acquisition
  • Modbus
  • M-Bus
  • Digital input / pulse counter

Synapsys Virtual IQ (vIQ) for Trend Interfacing

Synapsys Virtual IQ (vIQ) allows SIP2 to act as a Trend interfacing tool for third-party devices.

With vIQ, connected systems can be presented on a Trend network as if they were Trend controllers. Each transferred value is provided as a standard Trend module, such as a sensor, knob, switch or digital input, with support for labels, alarms and plots.

Synapsys BACnet Integration Controller (BIC) for BACnet Integration

SIP2 includes the Synapsys BACnet Integration Controller (BIC), helping engineers present third-party devices as BACnet devices.

Transferred values can be presented as BACnet object types, with Notification Class and Trendlog functionality available to support efficient BACnet interfacing within BMS projects.

SIP2 Hardware Features

  • Available in 100, 300 and 600 point variants
  • Compact footprint for metering panels and BMS control panels
  • LED indicators for power, bus activity, health and communications
  • 1 x RS485 connection
  • 1 x RS232 connection
  • 1 x M-Bus interface for up to 60 unit loads
  • 1 x digital input / pulse counter
  • Power over Ethernet (PoE)
  • DIN-rail mounting
  • Suitable for residential, commercial and plant-room installations

Available SIP2 Point Variants

SIP2 is available in three point variants to suit different project sizes.

  • SIP2 100 point variant
  • SIP2 300 point variant
  • SIP2 600 point variant

This allows engineers to select a SIP2 device based on the number of values, points or integration requirements needed for the project.

Supported Interfaces and Protocols

SIP2 supports a range of interfaces, protocols and software functions for building automation and metering projects.

Hardware interfaces:

  • RS485
  • RS232
  • M-Bus interface for up to 60 unit loads
  • Digital input / pulse counter
  • Ethernet with Power over Ethernet (PoE)

Supported drivers and functions:

  • MQTT
  • REST Server
  • Synapsys Virtual IQ (vIQ)
  • Synapsys BACnet Integration Controller (BIC)
  • Data Acquisition
  • Modbus
  • M-Bus
  • Digital input / pulse counter

Typical Applications

Use SIP2 when you need a compact interface for BMS, metering, plant or data acquisition projects.

Common applications include:

  • BACnet interfacing for BMS projects
  • Trend interfacing using Synapsys Virtual IQ
  • Metering data acquisition
  • M-Bus meter integration
  • Modbus field-bus integration
  • Digital input and pulse counter metering
  • Energy monitoring system integration
  • EBIS - Building Energy Monitoring Software Integration
  • EBIS - Tenant Billing Solutions Integration
  • Residential metering projects
  • Commercial building integration
  • Plant-room and control-panel installations
  • IoT connectivity using MQTT or REST

Technical Specifications

  • Device type: Interface
  • Available point variants: 100, 300 and 600
  • Operating temperature: 0°C to 55°C
  • Storage temperature: -25°C to 85°C
  • Mounting: DIN rail
  • Input voltage: 24VDC
  • Power consumption: 0.4A @ 24VDC
  • Dimensions: 90mm x 45mm x 60mm
  • Colour: Grey

SIPeasy Conversion Tool for Faster SIP2 Commissioning

SIP2 is designed to make commissioning faster for engineers working on BMS, metering and data acquisition projects.

For SIP2 solutions, Synapsys provides the SIPeasy conversion tool, allowing existing SIPeasy files to be converted for use with SIP2 hardware devices. SIPeasy files, conversion tools and technical documentation are available from the SIP Integrator support website.

Frequently Asked Questions

  • What does SIP2 hardware do?
    SIP2 is multi-protocol BMS interface hardware for building automation, metering, plant interfacing and data acquisition projects. It helps connect third-party systems, meters and plant data to BMS, Energy Monitoring Systems and Synapsys iNSIGHT platforms.
  • What protocols and drivers does SIP2 support?
    SIP2 supports MQTT, REST Server, Synapsys Virtual IQ (vIQ), Synapsys BACnet Integration Controller (BIC), Data Acquisition, Modbus, M-Bus and digital input / pulse counter functions.
  • Can SIP2 be used for BACnet integration?
    Yes. SIP2 includes Synapsys BACnet Integration Controller (BIC), which presents third-party devices as BACnet devices with values transferred as BACnet object types. Notification Class and Trendlog functionality are also supported.
  • Can SIP2 be used for Trend interfacing?
    Yes. Synapsys Virtual IQ (vIQ) allows SIP2 to act as a Trend interfacing tool, presenting third-party devices on a Trend network as if they were Trend controllers.
  • Does SIP2 support M-Bus meters?
    Yes. SIP2 includes a built-in M-Bus interface for up to 60 unit loads, making it suitable for metering and energy monitoring applications.
  • Does SIP2 support pulse metering?
    Yes. SIP2 includes a digital input / pulse counter, allowing pulse-based meter data to be brought into BMS, energy monitoring or reporting systems.
  • How many points does SIP2 support?
    SIP2 is available in 100, 300 and 600 point variants, allowing engineers to select the right model for the size of the project.
  • Does SIP2 support PoE?
    Yes. SIP2 supports Power over Ethernet, helping simplify installation where a separate power source is not available.
  • Is SIP2 DIN-rail mounted?
    Yes. SIP2 is DIN-rail mounted and has a compact footprint for installation in control panels, metering panels and plant-room environments.
